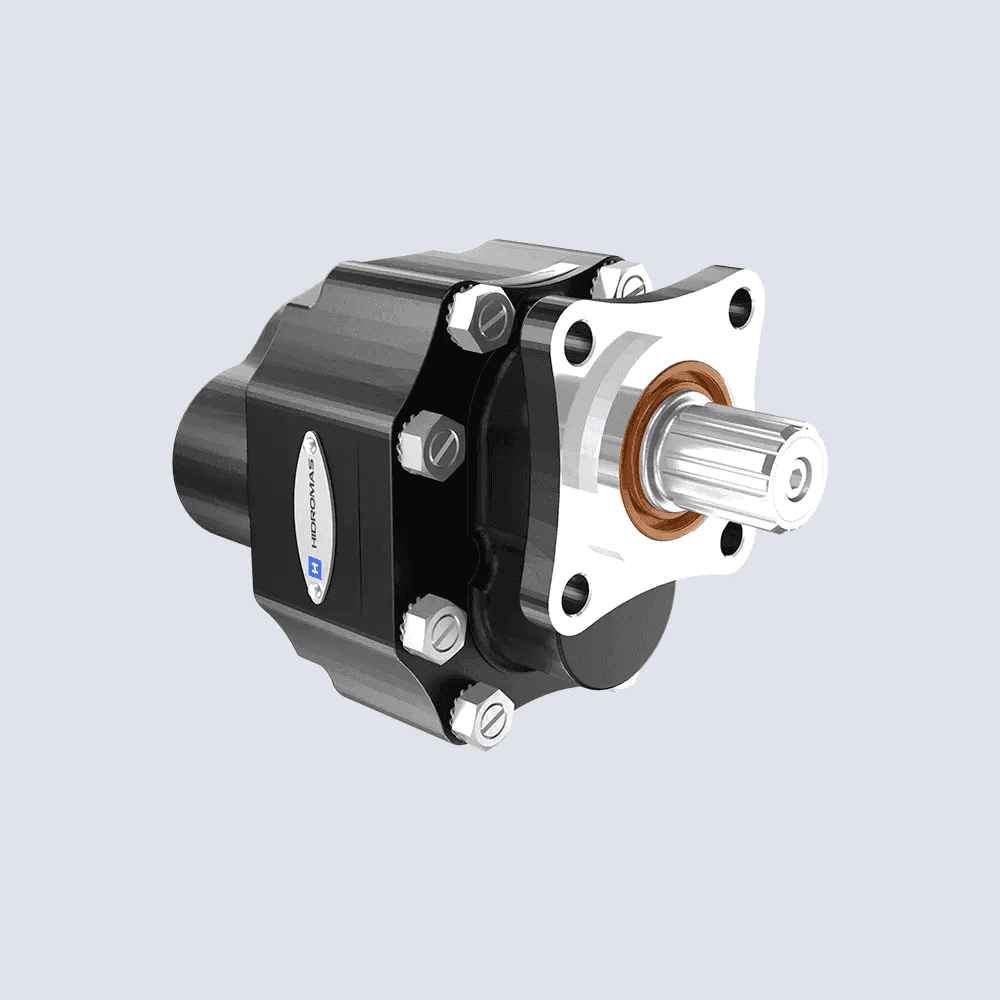

25-45 CC BI-ROTATIONAL GEAR PUMP-4H ISO (REAR PORT)
Pump Gear Pump

25-45 CC BI-ROTATIONAL GEAR PUMP-4H ISO (REAR PORT)

Product Code: GPBI2504510133

Hidromas 45 CC Bi-Rotational Gear Pump – 4H ISO Rear Port The Hidromas 45 CC Bi-Rotational Gear Pump – 4H ISO (Rear Port) is a high-performance hydraulic gear pump designed for reliable operation wit...

Product Description

Hidromas 45 CC Bi-Rotational Gear Pump – 4H ISO Rear Port

The Hidromas 45 CC Bi-Rotational Gear Pump – 4H ISO (Rear Port) is a high-performance hydraulic gear pump designed for reliable operation with PTO systems. With a 45 cc displacement, this bi-rotational gear pump delivers dependable hydraulic power for demanding applications. The pump supports a maximum continuous pressure of 170 bar, intermittent pressure up to 190 bar, and peak pressure up to 200 bar.

Featuring VITON seals, the pump is designed to operate across an oil temperature range of -25°C to 80°C and supports a recommended oil viscosity of 12–100 cSt. It offers a maximum continuous speed of 1700 rpm and a maximum intermittent speed of 2300 rpm. The pump uses a DIN 5462 shaft specification and has a maximum torque rating of 300 Nm.

Product Specifications

Maximum Peak Pressure (bar)-
Mounting Type-
RotationBi Rotational

Download Documents

GPBI2504510133 GEAR PUMP 45 CC BI-REAR PORT-4H ISO 2.PDF
25-45 CC BI-ROTATIONAL GEAR PUMP-4H ISO (REAR PORT).pdf
