Under Body Cylinders Cradles and Brackets

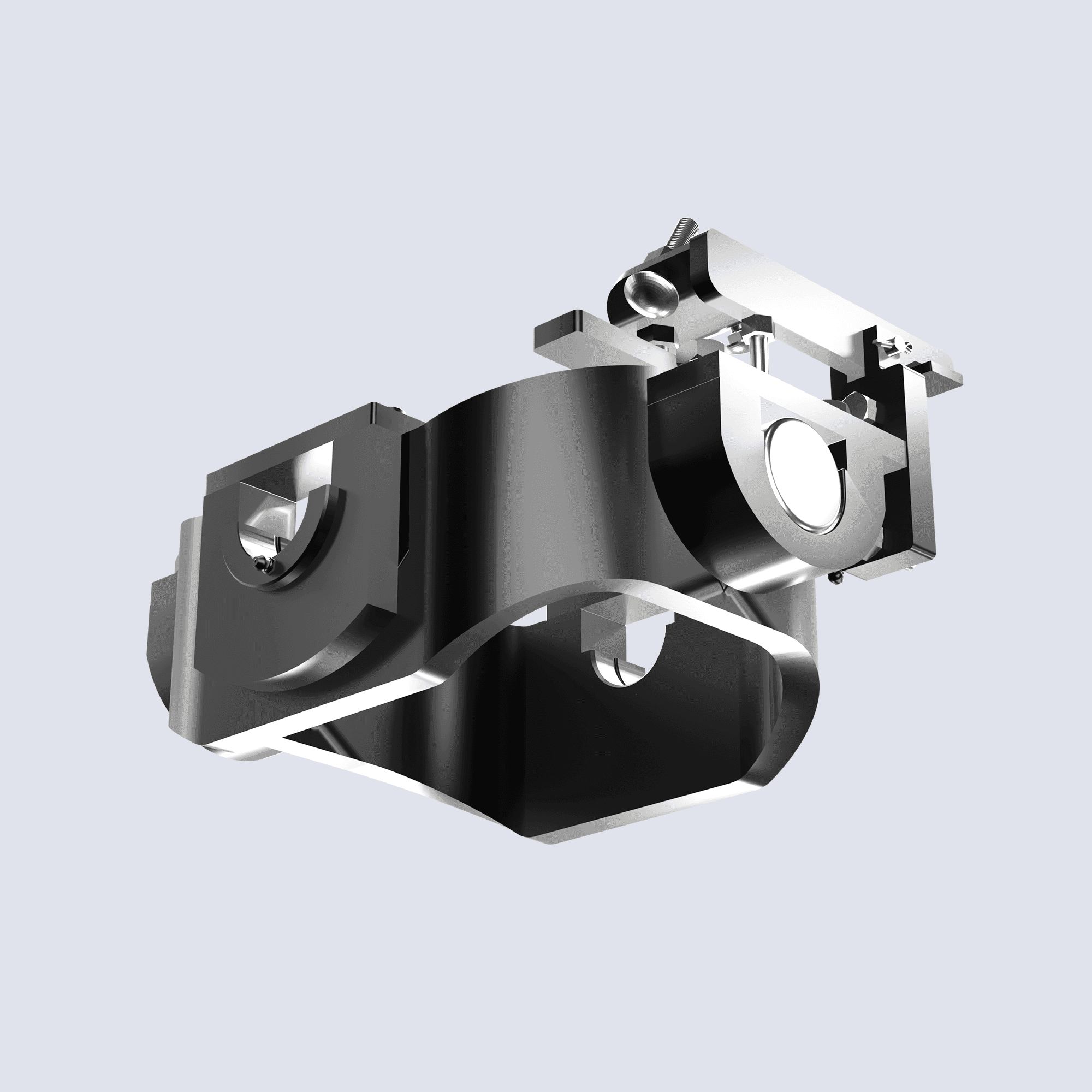

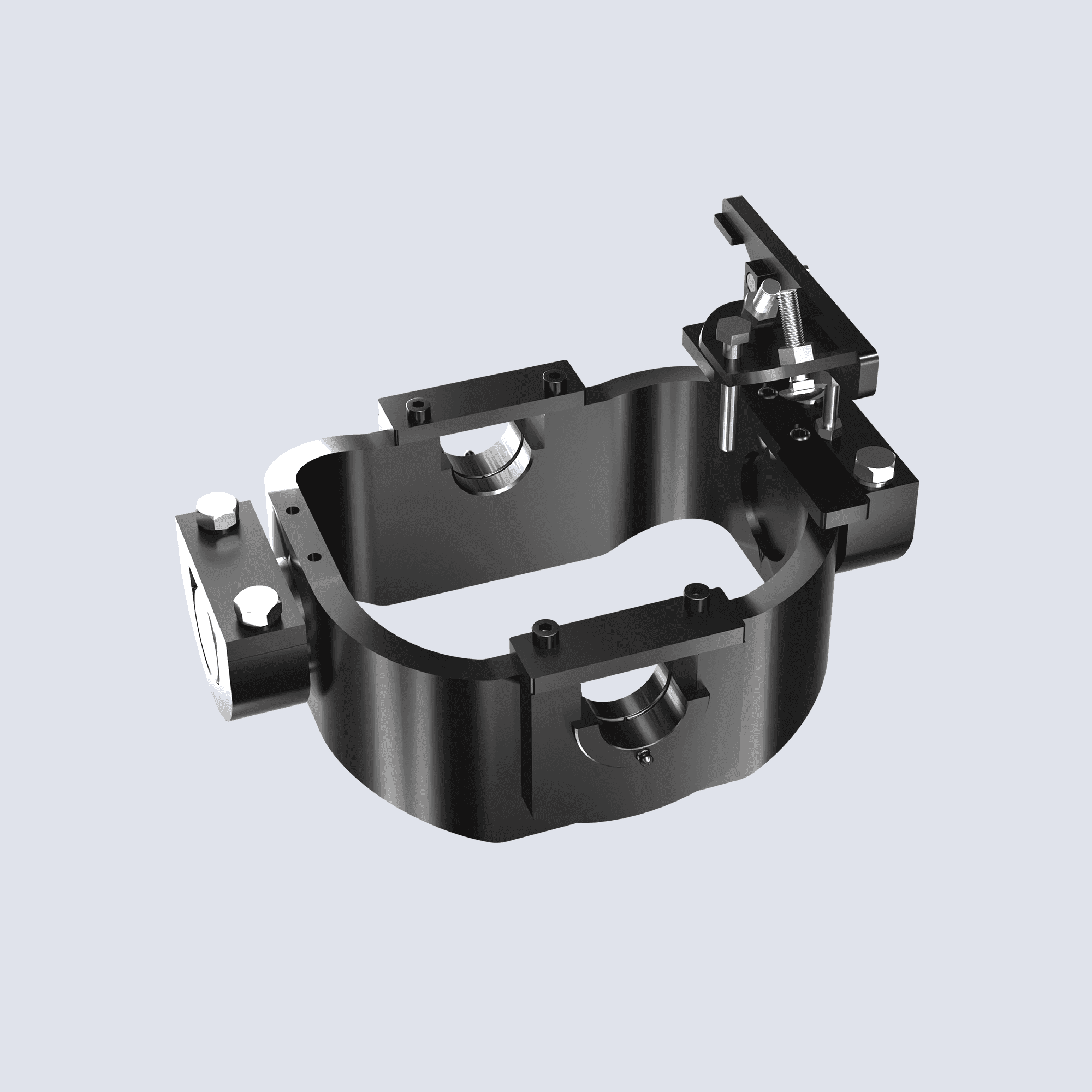

Cradle with Mechanism - 175

Product Code: 531745050400

Engineered to withstand extreme loads and intensive operating conditions, this cradle ensures maximum structural stability, precise cylinder alignment, and safe tipping performance....

Product Description

Underbody Cradle with Mechanism – Hidromas

Product Code: 531745050400

The Hidromas Underbody Cradle with Mechanism is a heavy-duty mounting solution designed for very large underbody tipping cylinders used in high-capacity trucks and trailers. Engineered to withstand extreme loads and intensive operating conditions, this cradle ensures maximum structural stability, precise cylinder alignment, and safe tipping performance.

Product Specifications

Effective Diameter (mm)-

Stroke (mm)-

Working Pressure (bar)-

Max Working Pressure (bar)-

Stages-

Duty Segment-

Download Documents

531745050400_Cradle_175.pdf
