What Is a Front-End Hydraulic Cylinder?

Introduction

A front-end hydraulic cylinder is a telescopic hydraulic cylinder installed at the front of a dump truck or trailer to lift the tipping body and unload bulk materials efficiently. These cylinders are widely used in construction, mining, agriculture, waste management, and transportation industries where fast, reliable, and powerful tipping performance is essential.

Unlike underbody cylinders, front-end cylinders are mounted directly behind the truck cab, providing a higher lifting angle, greater stability, and improved lifting capacity for heavy-duty applications.

Whether transporting sand, gravel, demolition waste, grain, or mining materials, front-end hydraulic cylinders are engineered to deliver consistent performance under demanding operating conditions.

How Does a Front-End Hydraulic Cylinder Work?

A front-end hydraulic cylinder converts hydraulic pressure into linear mechanical force.

The operating process consists of several stages:

1. The vehicle’s hydraulic pump generates oil pressure.

2. Pressurized hydraulic oil enters the cylinder.

3. Multiple telescopic stages extend sequentially.

4. The dump body rises smoothly to the desired tipping angle.

5. Once unloading is complete, gravity and hydraulic control return the cylinder to its fully retracted position.

This telescopic design provides a long extension length while maintaining a compact installation size when retracted.

Main Components of a Front-End Hydraulic Cylinder

A high-quality front-end cylinder consists of several precision-engineered components:

* Outer barrel

* Telescopic stages

* Piston assembly

* Gland and guide system

* High-performance sealing system

* Hydraulic oil ports

* Mounting brackets

* Chrome-plated piston surfaces

* Wear rings and bearings

Every component must withstand high operating pressures, shock loads, contamination, and thousands of lifting cycles.

Advantages of Front-End Hydraulic Cylinders

Front-end telescopic cylinders offer numerous benefits over other tipping systems.

Higher Tipping Angle

The front mounting position allows the body to achieve a steeper tipping angle, helping materials discharge more completely.

Greater Stability

The lifting force is applied from the centerline of the vehicle, providing excellent stability during operation.

Higher Lifting Capacity

Front-end cylinders can handle heavier payloads and larger dump bodies than many alternative lifting systems.

Compact Design

Although they extend several meters during operation, telescopic cylinders occupy minimal space when fully retracted.

Faster Loading Cycles

Efficient hydraulic design reduces lifting and lowering times, increasing vehicle productivity.

Lower Maintenance

Modern sealing technologies and precision manufacturing minimize wear and extend service life.

Typical Applications

Front-end hydraulic cylinders are commonly used in:

* Dump trucks

* Semi-trailers

* Construction vehicles

* Mining trucks

* Agricultural trailers

* Waste transportation vehicles

* Quarry operations

* Heavy-duty industrial transport

Their versatility makes them suitable for virtually any application requiring controlled hydraulic tipping.

Front-End Cylinder vs Underbody Cylinder

Although both systems perform the same basic function, their designs differ significantly.

Feature Front-End Cylinder Underbody Cylinder

Installation Behind the cab Under the chassis

Lifting Capacity Higher Medium

Tipping Angle Higher Moderate

Stability Excellent Good

Maintenance Access Easy Moderate

Typical Applications Heavy-duty dump trucks Standard trailers

Selecting the correct cylinder depends on payload, chassis configuration, operating environment, and tipping requirements.

Why Telescopic Design?

A single-stage cylinder capable of lifting a dump body would be extremely long and impractical.

Telescopic cylinders solve this problem by using multiple nested stages.

Benefits include:

* Long stroke

* Compact storage length

* High lifting force

* Smooth extension

* Reduced installation space

* Improved vehicle design flexibility

This engineering approach has become the industry standard for tipping applications worldwide.

Factors to Consider When Choosing a Front-End Hydraulic Cylinder

Selecting the right hydraulic cylinder requires evaluating several technical parameters.

Stroke Length

The cylinder must provide sufficient extension to achieve the required tipping angle.

Lifting Capacity

Choose a cylinder capable of safely lifting the maximum payload under all operating conditions.

Operating Pressure

Higher working pressures generally allow greater lifting force with a more compact design.

Number of Stages

Multi-stage cylinders offer greater extension while maintaining a shorter closed length.

Mounting Configuration

Proper mounting ensures safe operation and maximizes service life.

Corrosion Protection

Chrome-plated stages and high-quality coatings improve durability in harsh environments.

Seal Quality

Premium sealing systems reduce leakage and increase operational reliability.

Maintenance Best Practices

Proper maintenance significantly extends cylinder life.

Recommended practices include:

* Inspect the cylinder regularly for oil leaks.

* Keep chrome stages clean.

* Check mounting pins for wear.

* Replace damaged seals promptly.

* Use clean hydraulic oil.

* Follow the manufacturer’s lubrication recommendations.

* Avoid side loading during operation.

* Never exceed the rated lifting capacity.

Preventive maintenance reduces downtime and lowers long-term operating costs.

Why Quality Manufacturing Matters

Hydraulic cylinders operate under extremely high pressures, often exceeding 250 bar in demanding applications.

Precision machining, high-strength materials, robotic welding, advanced heat treatment, and strict quality control all contribute to:

* Longer service life

* Improved safety

* Better sealing performance

* Increased fatigue resistance

* Higher lifting efficiency

* Reduced maintenance costs

Investing in a high-quality hydraulic cylinder delivers greater reliability throughout the vehicle’s operational life.

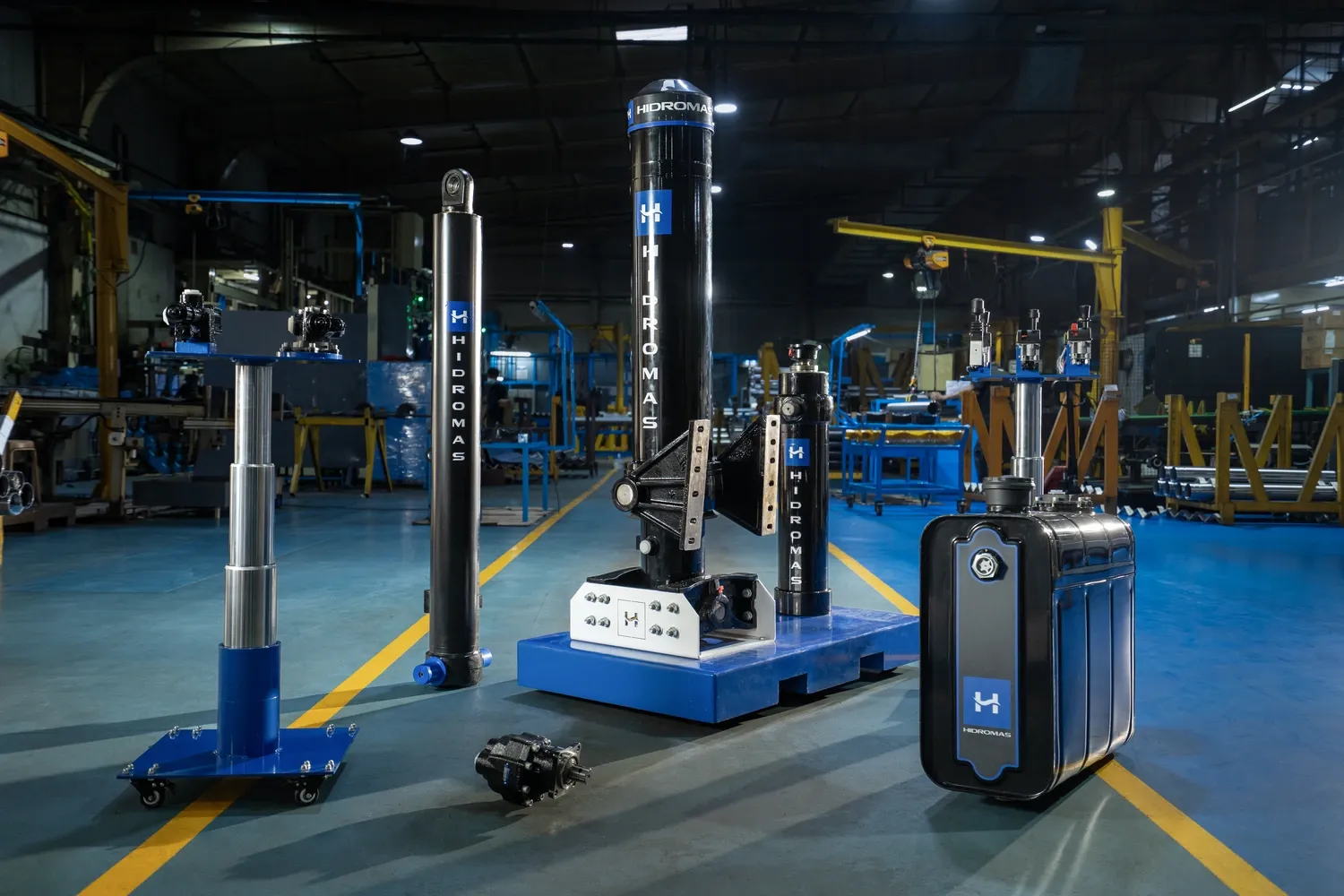

Hidromas Front-End Hydraulic Cylinders

With over 50 years of hydraulic engineering expertise, Hidromas manufactures front-end telescopic cylinders designed for demanding applications across construction, mining, transportation, agriculture, and heavy industries.

Every Hidromas cylinder is manufactured using advanced production technologies, precision machining, rigorous quality control, and extensive performance testing to ensure dependable operation in challenging environments.

Our product range offers:

* High lifting capacity

* Long service life

* Precision-engineered telescopic stages

* Excellent corrosion resistance

* Reliable sealing technology

* Global service and technical support

Whether you operate a single vehicle or manage a large commercial fleet, Hidromas front-end hydraulic cylinders are engineered to maximize uptime, safety, and operational efficiency.

Conclusion

Front-end hydraulic cylinders play a critical role in modern tipping applications by providing powerful, efficient, and reliable lifting performance. Their telescopic design enables long stroke lengths, high lifting capacity, and compact installation, making them the preferred solution for heavy-duty dump trucks and trailers worldwide.

Choosing a high-quality hydraulic cylinder ensures greater productivity, lower maintenance costs, and enhanced operational safety. Whether your application involves construction, mining, agriculture, or industrial transport, investing in a precision-engineered front-end hydraulic cylinder is essential for long-term performance and reliability.
